Product Introduction:

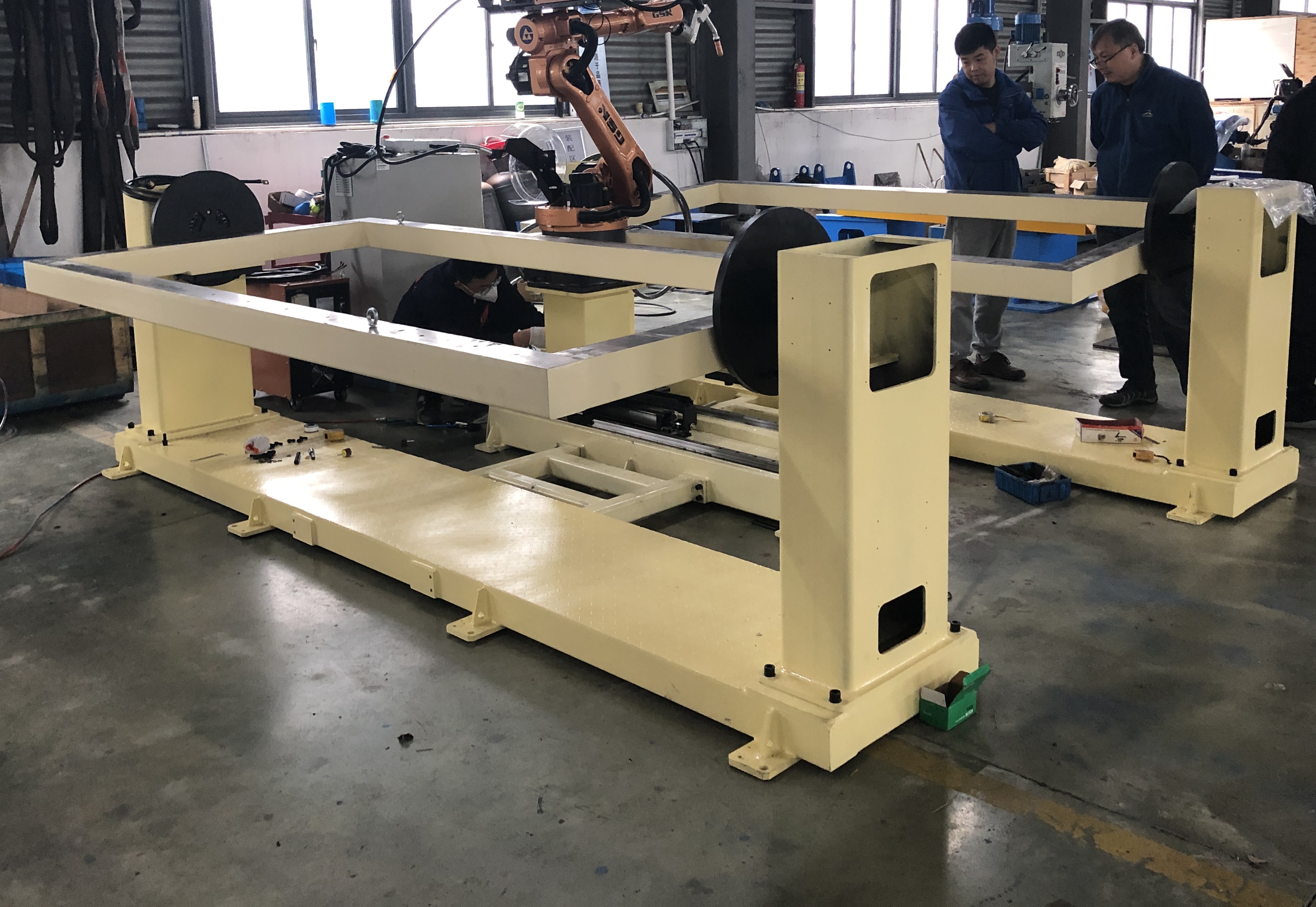

　　The single axis positioner is matched with a positioner to place the workpiece in the appropriate position, with free scheme design and 3D simulation scheme. Rack mounted single axis double support, using RV reducer, with an accuracy of ± 0.1mm, connected to welding robots for synchronous cooperation.

　　Automatic displacement machine is a specialized welding auxiliary equipment, suitable for welding displacement in rotary work, with ideal processing position and welding speed. It can be used in conjunction with operating machines and welding machines to form an automatic welding center, and can also be used for workpiece displacement during manual operations. The worktable rotation adopts a frequency converter for stepless speed regulation, with high speed regulation accuracy. The remote control box can achieve remote operation of the workbench, and can also be connected to the control system of the operating machine and welding machine to achieve linkage operation.

　　The welding positioner is generally composed of the rotary mechanism and the turnover mechanism of the workbench. The workpiece fixed on the workbench can reach the required welding and assembly angle through the lifting, turnover and rotation of the workbench. The workbench rotation is variable frequency stepless speed regulation, which can achieve satisfactory welding speed.

　　Selection of single axis positioner:

　　Usually, when designing a displacement machine scheme driven by electricity, it is necessary to choose the mechanical transmission mode and corresponding transmission mechanism between the motor and the worktable. Before making a selection, the following requirements must be clearly defined based on the characteristics of the assembly and welding process:

　　(1) Functional requirements for displacement machinery: Refers to what actions the displacement machinery should be able to perform, such as translation, lifting, or rotation. If it is translation, is it linear translation or curved translation; If it is a rotary motion, whether it is continuous rotation or intermittent flipping, etc;

　　(2) Requirements for sports speed: It is necessary to clarify whether it is fast or slow, whether it is constant speed or variable speed, whether it is step variable speed or continuously variable speed;

　　(3) Requirements for transmission stability and accuracy: For automatic welding positioners, high transmission accuracy is required, and worm gear transmission and gear transmission can be selected;

　　(4) Requirements for self-locking, overload protection, and vibration absorption capabilities: For general lifting, flipping, and transmission systems with the risk of overturning, the transmission mechanism must have self-locking capabilities for safety. There may be multiple transmission modes and their corresponding transmission mechanisms, and in this case, it is necessary to comprehensively consider the transmission power, compactness, transmission efficiency, and manufacturing cost between them before selecting the optimal one.

　　The main function of a single axis positioner is to:

　　By changing the operating positions of the welders, welding machines, and welders, the optimal welding position can be achieved and maintained;
