Welding positioner

Commodity name：Welding positioner
Manufacturer： Xinbao Intelligent

Welding positioner is a universal welding equipment mainly used for achieving circumferential seam welding. It can be equipped with argon arc welding machine (with or without wire filling), melting electrode gas shielded welding machine (CO2/MAG/MIG welding machine), plasma welding machine and other welding machine power supplies, and can be combined with other machines to form an automatic welding system.

Message

Product Details

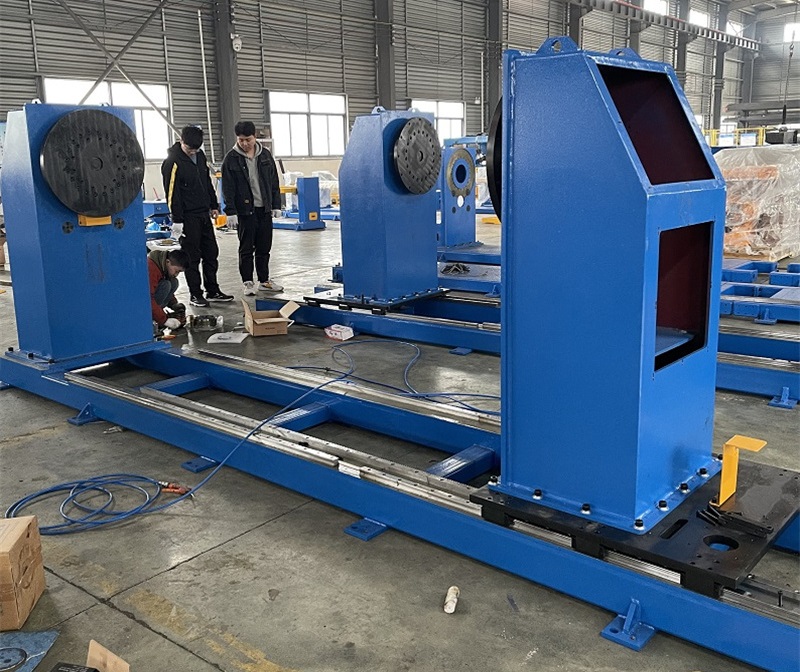

Introduction to single axis ultra long heavy-duty positioner:

Structural Design

-Sturdy frame: Made of high-strength steel welded together, it undergoes aging treatment to eliminate internal stress, ensuring structural stability and the ability to withstand the weight of ultra long heavy workpieces and inertial forces during rotation.

-High precision slewing bearing: Large precision slewing bearings are selected, with strong bearing capacity and high slewing accuracy, ensuring the smoothness and positioning accuracy of ultra long workpieces during rotation.

working principle

Powered by an electric motor, the rotating bearing is driven to rotate after being reduced by a gearbox, which in turn drives the ultra long heavy workpiece installed on it to rotate, adjusting the welding or processing parts of the workpiece to the appropriate position, and cooperating with welding equipment, processing equipment, etc. for operation.

application area

-Construction machinery manufacturing: used for welding and processing of ultra long and heavy components such as large crane booms and excavator buckets.

-Shipbuilding: Suitable for welding and assembly operations of large components such as ship decks and hull sections.

-Wind power equipment manufacturing: can be used for the processing and assembly of ultra long and heavy components such as wind turbine towers and blades.

-Petrochemical equipment manufacturing: used for flipping and positioning workpieces in the manufacturing process of large reaction vessels, storage tanks, and other equipment.
